Product Summary

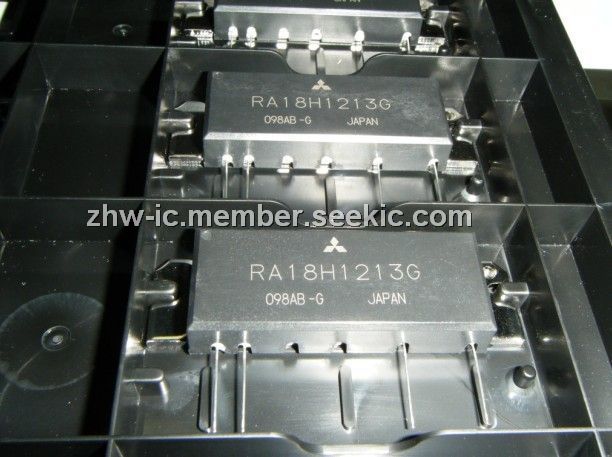

The RA18H1213G is a 18-watt RF MOSFET Amplifier Module for 12.5-volt mobile radios that operate in the 1.24- to 1.30-GHz range. It is designed for non-linear FM modulation, but may also be used for linear modulation by setting the drain quiescent current with the gate voltage and controlling the output power with the input power.
Parametrics
Absolute maximum ratings: (1)VDD Drain, Voltage: 17V when VGG<5V, ZG=ZL=50W; (2)VGG, Gate Voltage: 6 V when VDD<12.5V, Pin=0mW, ZG=ZL=50W; (3)Pin, Input Power: 300 mW; (4)Pout, Output Power: 30 W when f=1.24-1.30GHz, ZG=ZL=50W ; (5)Tcase(OP), Operation Case Temperature Range: -30 to +110℃ when f=1.24-1.30GHz, ZG=ZL=50W; (6)Tstg, Storage Temperature Range: -40 to +110℃.
Features
Features: (1)Enhancement-Mode MOSFET Transistors; (2)Broadband Frequency Range: 1.24-1.30GHz; (3)Low-Power Control Current IGG=1mA (typ) at VGG=5V; (4)Module Size: 66 x 21 x 9.88 mm; (5)Linear operation is possible.
