Product Summary

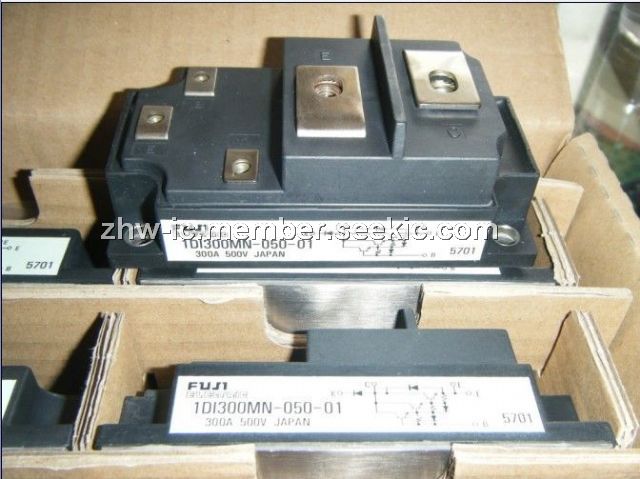

The 1DI300MN-050-01 is a power transistor module. The applications of it are general purpose inverter, uninterruptible power supply and servo & spindle drive for NC machine tools.
Parametrics
Absolute maximum ratings: (1)VCBO:600V; (2)VCEO:600V; (3)VCEO(SUS):450V; (4)VEBO:10V; (5)IC:300A; (6)ICP:600A; (7)-IC:300A; (8)IB:18A; (9)IBP:36A; (10)PC:1380W; (11)PD:100W; (12)TJ:+150℃; (13)Tstg:-40℃ to +125℃; (14)m:430g; (15)Viso:2500V.
Features
Features: (1)short circuit capability is possible; (2)high DC current gain; (3)wiring simplification.
