Product Summary

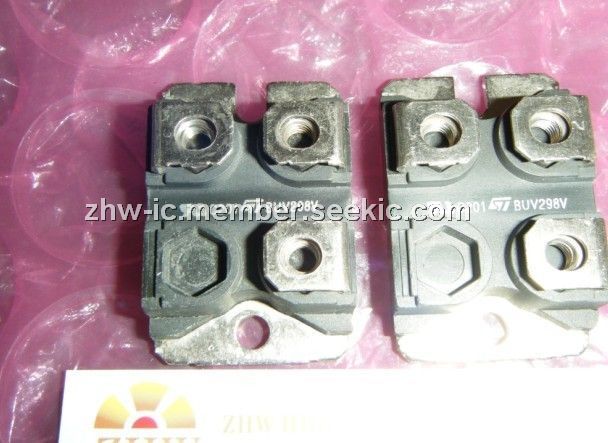

The BUV298V is an NPN transistor power module. It is used in motor control, smps & ups, welding equipment.
Parametrics
BUV298V absolute maximum ratings: (1)VCEV Collector-Emitter Voltage (VBE = -5 V): 1000 V; (2)VCEO(sus) Collector-Emitter Voltage (IB = 0): 450 V; (3)VEBO Emitter-Base Voltage (IC = 0): 7 V; (4)IC Collector Current: 50 A; (5)ICM Collector Peak Current (tp = 10 ms): 75 A; (6)IB Base Current: 10 A; (7)IBM Base Peak Current (tp = 10 ms): 16 A; (8)Ptot Total Dissipation at Tc = 25 ℃: 250 W; (9)Tstg Storage Temperature: -55 to 150 ℃; (10)Tj Max. Operating Junction Temperature: 150 ℃; (11)VISO Insulation Withstand Voltage (AC-RMS): 2500 V.
Features
BUV298V features: (1)NPN transistor; (2)high current power bipolar module; (3)verylow rth junction case; (4)specified accidental overload areas; (5)isolatedcase (2500v rms); (6)easy to mount; (7)low internal parasitic inductance.

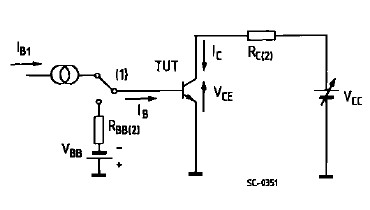

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BUV298V |
STMicroelectronics |
Transistors Bipolar (BJT) NPN Power Module |
Data Sheet |
|
|
||||||||||||
