Product Summary

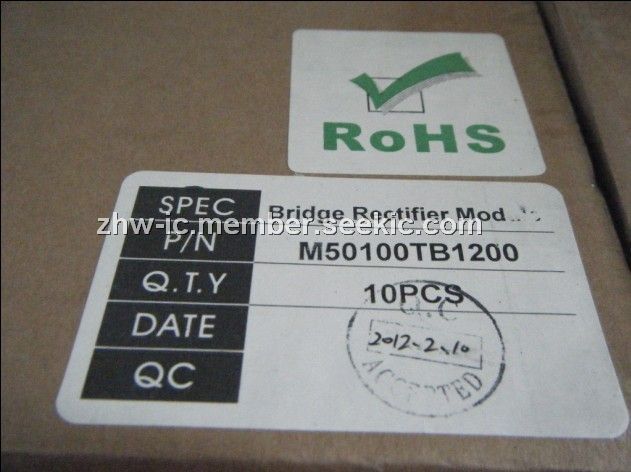

The M50100TB1200 is a High Surge Current Rectifier.

Parametrics

M50100TB1200 absolute maximum ratings: (1)Maximum DC Output Current (Tc = 85℃): 100 A; (2)Maximum Voltage Drop @ Amps Peak: 1.2V @ 100 A; (3)Operating Junction Temperature Range: -40 to 125℃; (4)Repetitive Peak Reverse Voltage (AC Line Nominal): 800 Vpk (280 VAC), 1200 Vpk (480 VAC), 1400 Vpk (530 VAC), 1600 Vpk (600 VAC); (5)Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz): 1500 A; (6)Maximum I2T for Fusing (t=8.3ms): 9350 A2sec; (7)Maximum Thermal Resistance, Junction to Ceramic Base per Chip: 0.3℃/W; (8)Isolation Voltage: 2500 Vrms.

Features

M50100TB1200 features: (1)High Surge Current Rectifier Circuits; (2)5 Different Circuits to Choose from; (3)Up to 1600 Volt Blocking Standard.

Diagrams

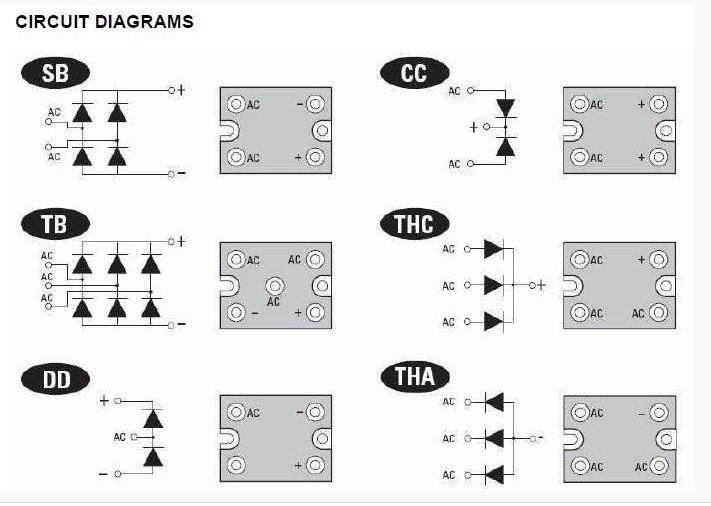

M50100TB1200 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
M50100TB1200
M50100TB1200
Crydom
Discrete Semiconductor Modules DIODE MODULE 480VAC 100ADC 1200VP
Data Sheet
0-1: $58.67
1-10: $55.91
10-25: $54.63
25-50: $53.34
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
M50100
M50100
Other

Data Sheet
Negotiable
M5010012F
M5010012F
Crydom
Discrete Semiconductor Modules 100A 600V SCR CC MODULE POWER
Data Sheet
0-1: $97.66
1-10: $89.80
10-25: $85.78
25-50: $80.95
M5010013F
M5010013F
Crydom
Discrete Semiconductor Modules Power Modules,50-100 Amp SCR/Diode Module
Data Sheet
Negotiable
M50100SB1200
M50100SB1200
Crydom
Discrete Semiconductor Modules DIODE MODULE 480VAC 100ADC 1200VP
Data Sheet
0-1: $48.49
1-10: $46.21
10-25: $45.15
25-50: $44.09
M50100CC600
M50100CC600
Crydom
Discrete Semiconductor Modules 100Amps 240VAC CC Circuit Power Module
Data Sheet
0-1: $55.67
1-10: $51.19
10-25: $48.89
25-50: $46.15
M50100CC1000
M50100CC1000
Crydom
Discrete Semiconductor Modules 100Amps 380VAC CC Circuit Power Module
Data Sheet
0-1: $58.44
1-10: $53.73
10-25: $51.32
25-50: $48.44
