Product Summary

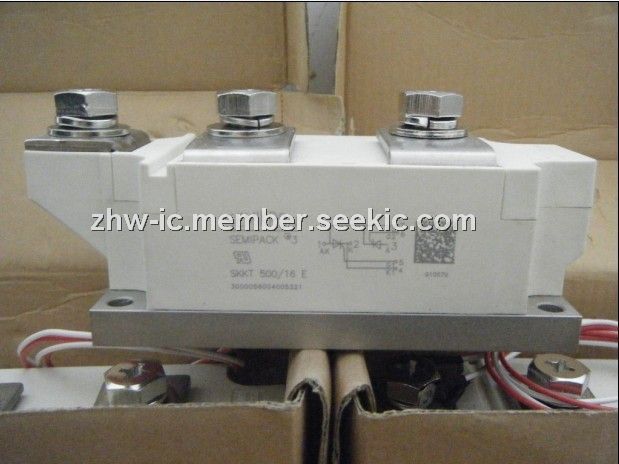

The SKKT500/16E is a thyristor. The applications of it are AC motor softstarters, input converters, DC motor control, temperature control and professional light dimming.
Parametrics
Absolute maximum ratings: 1)VT (TVJ=25℃, IT=1700A):1.5V(max.); (2)VT(TO) (TVJ=130℃):0.925V(max.); (3)rT (TVJ=130℃):0.27mΩ(max.); (4)IDD;IRD (TVJ=130℃;VRD=VRRM;VDD=VDRM):100mA(max.); (5)(di/dt)cr (TVJ=130℃):200A/μs(max.); (6)(dv/dt)cr (TVJ=130℃):1000V/μs(max.); (7)VGD (TVJ=130℃;d,c):0.25V(max.); (8)IGD (TVJ=130℃;d,c):10mA(max.).
Features
Features: (1)heat transfer through aluminium nitride ceramic islated metal baseplate; (2)precious metal pressure contacts for high reliablity; (3)UL recognized, file no. E63532.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKKT500/16E |
Other |
|
Data Sheet |
Negotiable |
|
||||
