Product Summary

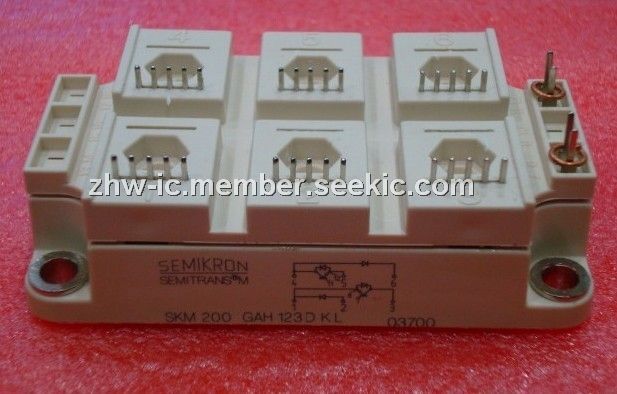

The SKM200GAH123DKL is designed as one kind of Trench IGBT module that can be used in AC inverter drivers and UPS applications.

Parametrics

SKM200GAH123DKL absolute maximum ratings: (1)VCES: 1200 V;(2)Ic: 200 or 180 A; (3)ICRM: 300 A; (4)VGES: +/- 20 V; (5)tpsc: 10 us; (6)IF: 200 or 130 A; (7)IFRM: 300 A; (8)IFSM: 1440 A; (9)Visol: 2500 V.

Features

SKM200GAH123DKL features: (1)MOS input (voltage controlled); (2)N-channel, homegeneous Si; (3)low inductance case; (4)very low tail current with low temperature dependence; (5)high short circuit capability, self limiting to 6 x Icnom; (6)latch-up free; (7)fast & soft inverse CAL diodes; (8)isolated copper baseplate using DCB direct copper bonding technology; (9)large clearance (13 mm) and creepage distances (20 mm).

Diagrams

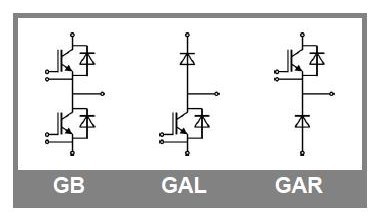

SKM200GAH123DKL diagram
