Product Summary
THe SKM400GB12T4 is a Fast IGBT4 Module. Its typicla applications are AC inverter drives, UPS and electronic welders at fsw up to 20 kHz.
Parametrics
Absolute maximum ratings: (1)VCES: 1200 V; (2)IC: 618A when Tj = 175℃, Tc = 25℃; 475A when Tj = 175℃, Tc = 80℃; (3)ICnom: 400 A; (4)ICRM: 1200A when ICRM = 3xICnom; (5)VGES: -20~20V; (6)tpsc: 10μs when VCC = 800 V, VGE ≤ 15 V, VCES ≤ 1200 V, Tj = 150℃; (7)Tj: -40~175℃
Features
Features: (1)IGBT4=4. Generation (Trench)IGBT; (2)VCEsat with positive temperature coefficient; (3)High short circuit capability, self limiting to 6 x ICNOM; (4)Soft switching 4. Generation CAL diode (CAL4).

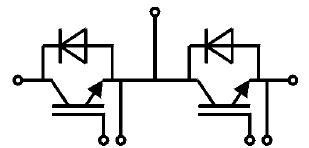

Diagrams
 |
