Product Summary
The 7MBR25SA120B-50 is an IGBT module. Applications include Inverter for motor drive, AC and DC servo drive amplifier and Uninterruptible power supply.
Parametrics
7MBR25SA120B-50 absolute maximum ratings: (1)Collector-Emitter voltage(inverter): 1200V; (2)Gate-Emitter voltage(inverter): ±20V; (3)Collector current-Continuous(inverter): 35/25A; (4)Collector current-1mS(inverter): 70/50A; (5)Collector Power Dissipation(inverter): 180W; (6)Operating Junction temperature: 150℃; (7)Storage temperature: -40～+125℃; (8)Isolation voltage: 2500VAC; (9)Mounting Screw Torque: 3.5N.m.
Features
7MBR25SA120B-50 features: (1)Compact package; (2)P.C. board mount; (3)Converter diode bridge, Dynamic brake circuit.

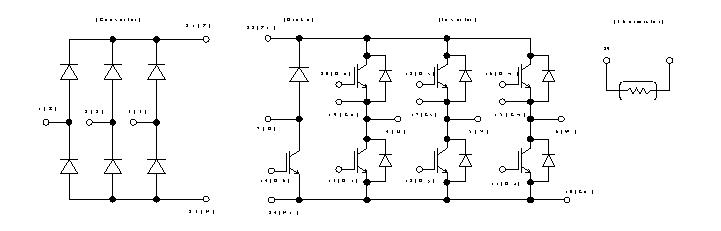

Diagrams
 |
