Product Summary

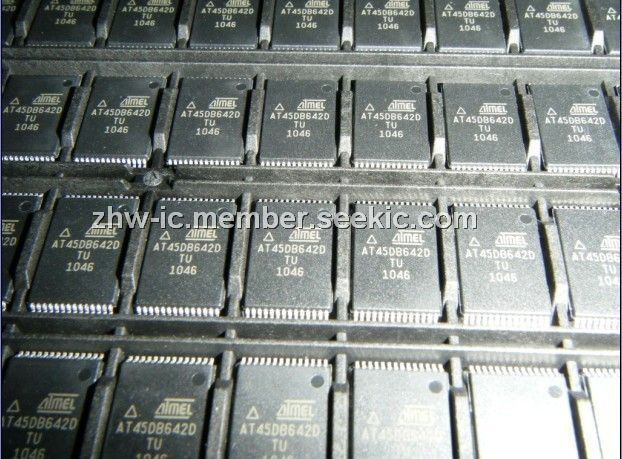

AT45DB642D-TU is a 2.7-volt, dual-interface sequential access Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. It supports RapidS serial interface and Rapid8 8-bit interface. Its package is TSOP.
Parametrics
Absolute maximum ratings: (1)Temperature under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (except VCC but including NC pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V.
Features
Features: (1)Single 2.7V - 3.6V Supply; (2)Dual-interface Architecture; (3)Two SRAM Data Buffers (1024/1056 Bytes); (4)Continuous Read Capability through Entire Array; (5)Low-power Dissipation; (6)Hardware and Software Data Protection Features; (7)Permanent Sector Lockdown for Secure Code and Data Storage; (8)JEDEC Standard Manufacturer and Device ID Read; (9)100,000 Program/Erase Cycles Per Page Minimum; (10)Data Retention ?20 Years; (11)Green (Pb/Halide-free/RoHS Compliant) Packaging Options; (12)Temperature Range: Industrial: -40℃ to +85℃.

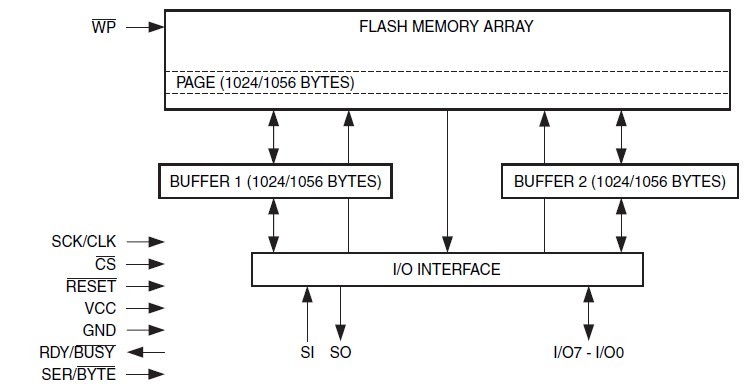

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT45DB642D-TU |
Atmel |
Flash 64M 28 I/O Pin Ser Rapid8 1056B 2.7V |
Data Sheet |
|
|
||||||||||||
