Product Summary

The BLF278 is a VHF push-pull power MOS transistor. Dual push-pull silicon N-channel enhancement mode vertical D-MOS transistor encapsulated in a 4-lead, SOT262A1 balanced flange package with two ceramic caps. The mounting flange provides the common source connection for the transistors. Applications are broadcast transmitters in the VHF frequency range.

Parametrics

BLF278 limiting values: (1)VDS, drain-source voltage: max=110V; (2)VGS, gate-source voltage: max=±20V; (3)ID, drain current (DC): max=18A; (4)Ptot, total power dissipation: max=500W when up to Tmb = 25 ℃ total device;both sections equally loaded; (5)Tstg, storage temperature: min=-65℃ max=150℃; (6)Tj, junction temperature: max=200℃.

Features

BLF278 features: (1)High power gain; (2)Easy power control; (3)Good thermal stability; (4)Gold metallization ensures excellent reliability.

Diagrams

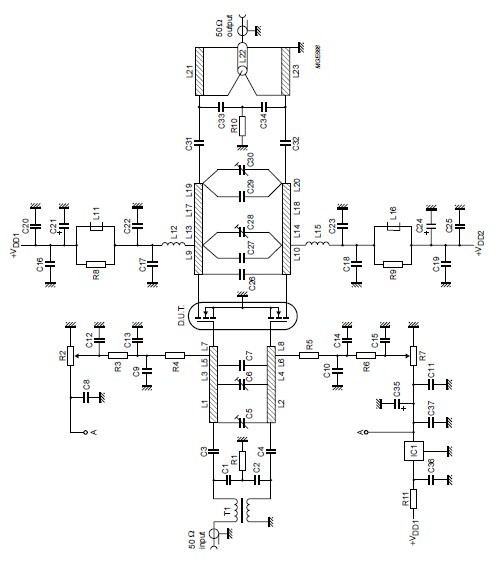

BLF278 block diagram
