Product Summary
The SS2B003 is a surfact mount super fast rectifier.
Parametrics
Absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage, VRRM: 100V; (2)Maximum RMS Voltage, VRMS: 70V; (3)Maximum DC Blocking Voltage, VDC: 100V; (4)Maximum Peak Forward Voltage at IF = 2.0 A, VF: 0.95V; (5)Maximum DC Reverse Current at Rated DC Blocking Voltage, IR: 5.0μA; (6)Maximum Reverse Recovery Time, Trr: 35ns; (7)Typical Junction Capacitance, CJ: 50pf; (8)Junction Temperature Range, TJ: - 65 to + 150℃; (9)Storage Temperature Range, TSTG: - 65 to + 150℃.
Features
Features: (1)High current capability; (2)High surge current capability; (3)High reliability; (4)Low reverse current; (5)Low forward voltage drop; (6)Super fast recovery time; (7)Pb / RoHS Free.

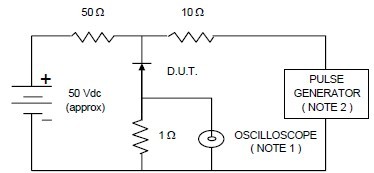

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SS2B003 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SS2B003 |
Other |
|
Data Sheet |
Negotiable |
|
||||
