Product Summary
The MFRC53101T is a highly integrated reader IC for contactless communication at 13.56 MHz. It supports all layers of the ISO14443 including the type A and type B communication scheme.
Parametrics
DC characteristics: (1)Digital Supply Voltage:4.5V to 5.5V or 3.0V to 3.6V; (2)Analog Supply Voltage:4.5V to 5.5V; (3)Transmitter Supply Voltage:3.3V to 5.5V; (4)Operating Digital Supply Current(Idle Command): 6mA; (5)Operating Analog Supply Current(Idle Command,Receiver On):25mA; (6)Operating Buffered Antenna Driver Supply Current(continuous wave):50mA.
Features
Features: (1)Crypto1 and secure non-volatile internal key memory; (2)Pin-compatible to the MF RC500, MF RC530 and the SL RC400; (3)Parallel μ-Processor interface with internal address latch and IRQ line; (4)SPI compatible interface; (5)Flexible interrupt handling; (6)Automatic detection of the used μ-Processor interface type; (7)Comfortable 64 byte send and receive FIFO-buffer; (8)Hard reset with low power function; (9)Power down mode per software; (10)Programmable timer; (11)Unique serial number; (12)Bit- and byte-oriented framing; (13)Internal oscillator buffer to connect 13.56 MHz quartz, optimised for low phase jitter; (14)3.3 V to 5 V operation for transmitter (antenna driver) in short range and proximity applications; (15)3.3 V or 5V operation for the digital part.

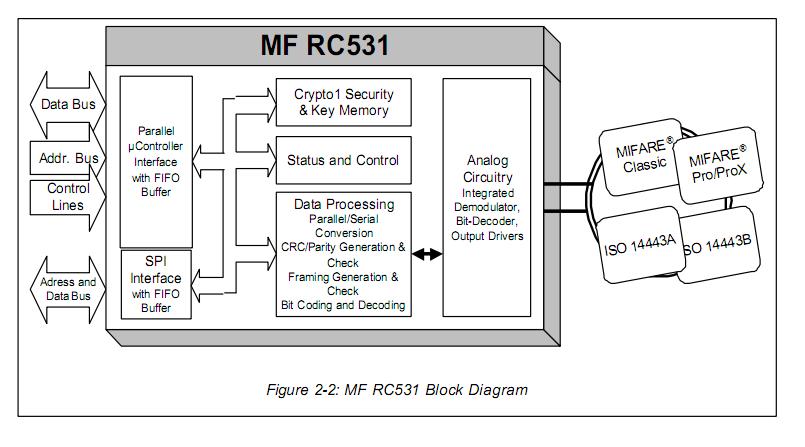

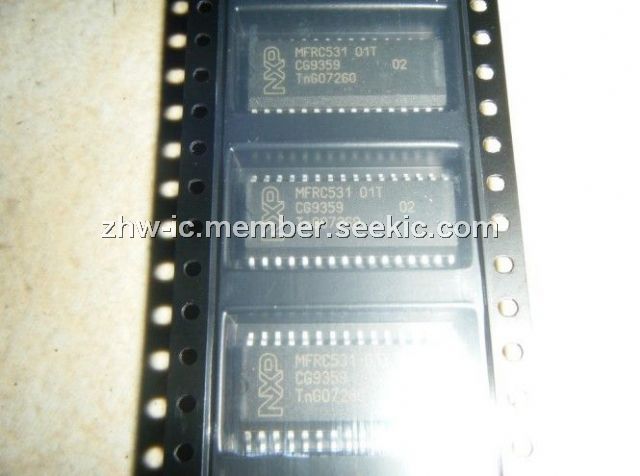

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MFRC53101T |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
MFRC53101T/0FE,112 |
NXP Semiconductors |
RFID Transponder MIFARE HS READER |
Data Sheet |
|
|
||||||||||||
