Product Summary

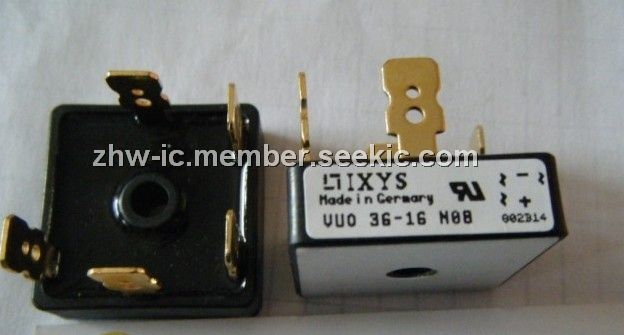

The VUO36-16N08 is a Three Phase Rectifier Bridge. The applications of the VUO36-16N08 include Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.
Parametrics
VUO36-16N08 absolute maximum ratings: (1)IdAV: 27 A at TC = 85℃, module; (2)IdAVM: 35 A at TC = 62℃, module; (3)IFSM: 550 A at TVJ = 45℃; t = 10 ms (50 Hz), sine, 600 A at VR = 0 t = 8.3 ms (60 Hz), sine, 500 A at TVJ = TVJM t = 10 ms (50 Hz), sine, 550 A at VR = 0 t = 8.3 ms (60 Hz), sine; (4)I2t: 1520 A2s at TVJ = 45℃ t = 10 ms (50 Hz), sine, 1520 A2s at VR = 0 t = 8.3 ms (60 Hz), sine, 1250 A2s at TVJ = TVJM t = 10 ms (50 Hz), sine, 1250 A2s at VR = 0 t = 8.3 ms (60 Hz), sine; (5)TVJ: -40 to +150 ℃; (6)TVJM: 150 ℃; (7)Tstg: -40 to +150 ℃; (8)VISOL: 2500 V~ at 50/60 Hz, RMS t = 1 min, 3000 V~ at IISOL ≤ 1 mA t = 1 s; (9)Md: 2 ± 10 % Nm at Mounting torque (M5), 18 ± 10 % lb.in. (10-32 UNF); (10)Weight: 22 g.
Features
VUO36-16N08 features: (1)Package with 1/4 fast-on terminals; (2)Isolation voltage 3000 V; (3)Planar passivated chips; (4)Blocking voltage up to 1800 V; (5)Low forward voltage drop; (6)UL registered E 72873.
